Slot grease spring loaded grease pot content 100cc heavy spring M10x1

SKU: 100A/F-H

Price:
( Incl. BTW)
Stock:
In stock (70)

Description

AUTOMATIC REFILLABLE GREASE

100 cc grease cup for the continuous lubrication of bearings, bushings, etc.
Functions when the machine, etc. is in operation.
Saves downtime and costly repairs.

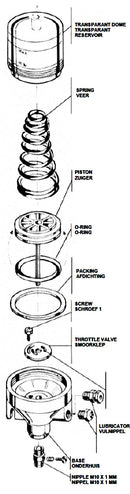

CHARACTERISTICS :

LEXAN reservoir and housing
Three different types of compression springs
Adjustable throttle valve
Adjusting screw for grease delivery adjustment
Dust and waterproof grease cup 100 cc robust design with a temperature range of –23 ° C + 132 ° C.

BENEFITS :

Visual fat consumption and remote control
Grease lubrication pot can be installed in all circumstances, including dangerous, difficult to access and / or covered areas
All grease viscosities can be used
Lubrication is continuous; only pumpable fats.
Fat will not harden; grease cup can be installed in any position, including underwater.
The grease content reservoir reduces the need for maintenance and prevents too much / too little lubrication.

THROTTLE VALVE FOR ADJUSTING LUBRICANT FLOW:

Set by loosen screw 1; turning the throttle to the right is more fat to the left less fat; then tighten the screw to the desired position.

Note: Fill the lubrication point with grease before installing the automatic “SLOT GREASE” grease cup.
